Products home > Cartilage


  • Quantitative analysis of cartilage morphology in the joint area
  • Quantitative analysis of Cartilage Thickness in 2D and 3D MR images of knee joints
  • DICOM 3.0 compatibility
  • MS Excel and SAS output compatibility
  • Convenient reporting of results

Key Features

3D Detection of Cartilage & Bone Surfaces of Knee Joint Area

  • Simultaneous automated detection of 6 surfaces in mutual context
  • User-friendly graphical interface
  • Ease of use in work flow settings
  • Interactive bone surface rendering in 3D
  • Color-coded cartilage thickness on bone surfaces
  • Corresponding 2D and 3D displays

Quantitative Analysis and Interactive Measurements of Cartilage Thickness

  • Cartilage volume, mean and standard deviation of cartilage thickness
  • Histograms of cartilage thickness distribution
  • Convenient manual editing of results if necessary
  • Real-time measurement of cartilage thickness in an interactively specified location
  • User-modifiable distribution setttings.
  • Multiple report formats.

Click on the links to the right to view printable, 2-page color flyers.

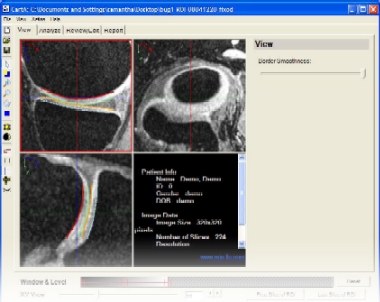

Screen Shots
  • Inherently 3-D surface analysis & measurements
  • Femur


  • Interactive cartilage thickness measurement provided for any location in the 3D joint area
  • XY View

    YZ View

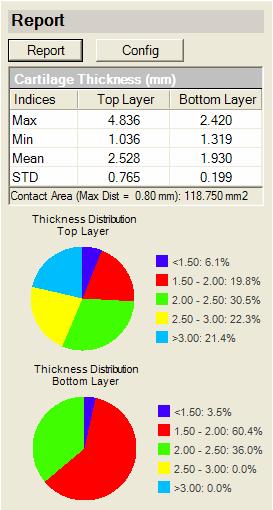

  • Instant on-screen reporting upon analysis

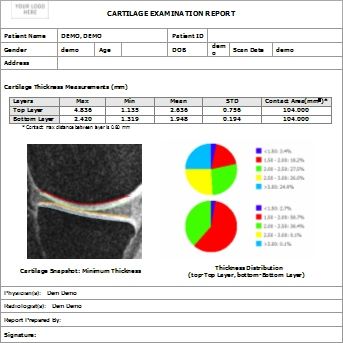

  • Report can be exported to HTML or PDF document, allowing archiving and printing


To request further information, and/or a DEMO CD,
email MIA at:

Vascular - clinical use
Vascular Tools 5- FDA Approved - clinical assesment of FMD/endothelial function of brachial artery and IMT/intimal-medial thickness of carotid artery from ultrasound image data.

View Flyer

Find Out More

Request Demo

Vascular - research use
Vascular Research Tools 6
- Vascular Tools plus additional modules for carotid plaque analysis, vascular compliance. Includes additional reporting flexibility, well suited for clinical trials. Available as software or as turn-key integrated workstations, for investigational use only.

View Flyer

Find Out More

Request Demo

Aorta - research use
Aortic Analyzer
... software for quantitative analysis of aortic morphology and function for MR or CT data in 3D and 4D

View Flyer

Request Demo

Cartilage -
... software for quantitative analysis of cartilage MR image data in 2D and 3D

View Flyer

Request Demo
